■ Product Description

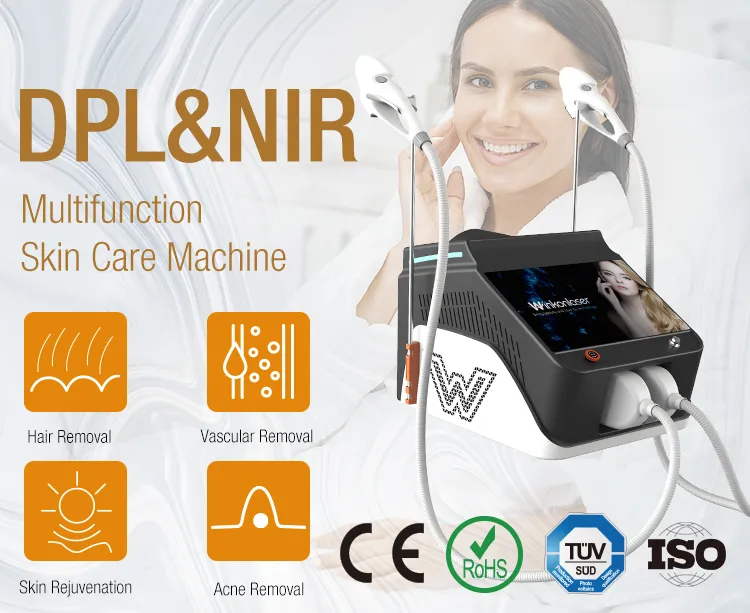

What is the New DPL Hair Removal Technology?

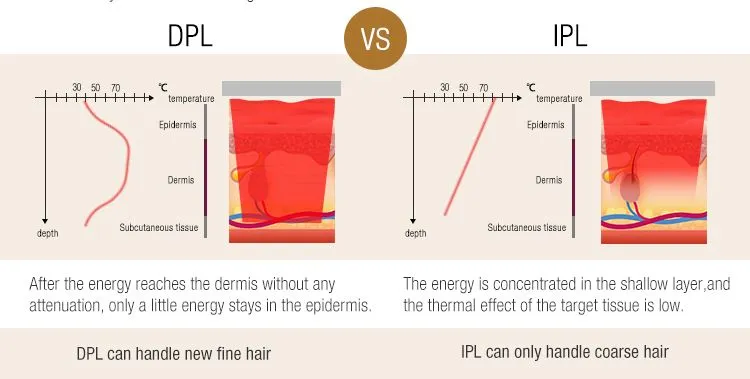

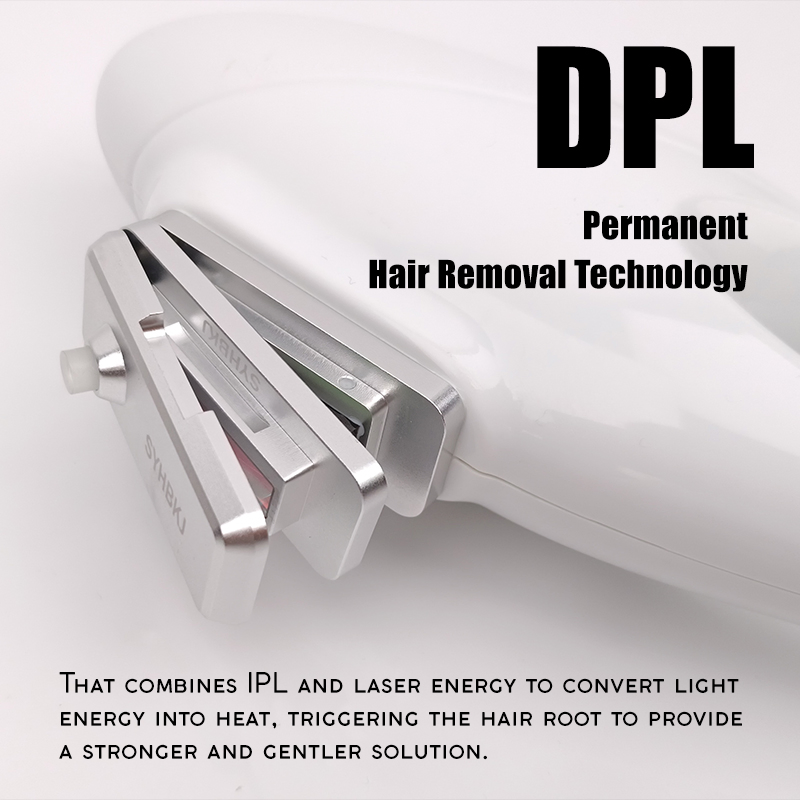

DPL (Delicate Pulsed Light) is the latest permanent hair removal technology that combines IPL and laser energy to convert light energy into heat, triggering the hair root to provide a stronger and gentler solution.
DPL is a new permanent hair removal technology with a pure target wavelength that gradually heats the dermis with short pulses at a high repetition rate to a temperature that effectively destroys the hair follicle and prevents re-growth of hair, while avoiding damage to the surrounding tissues, resulting in painless hair removal.
Intro DPL (Dynamic Pulsed Light)

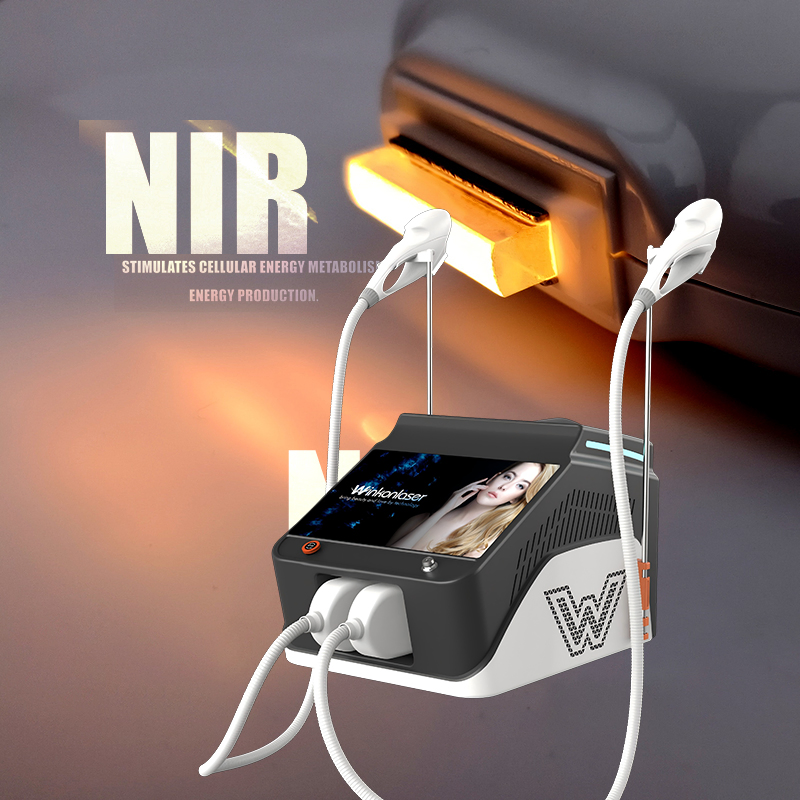

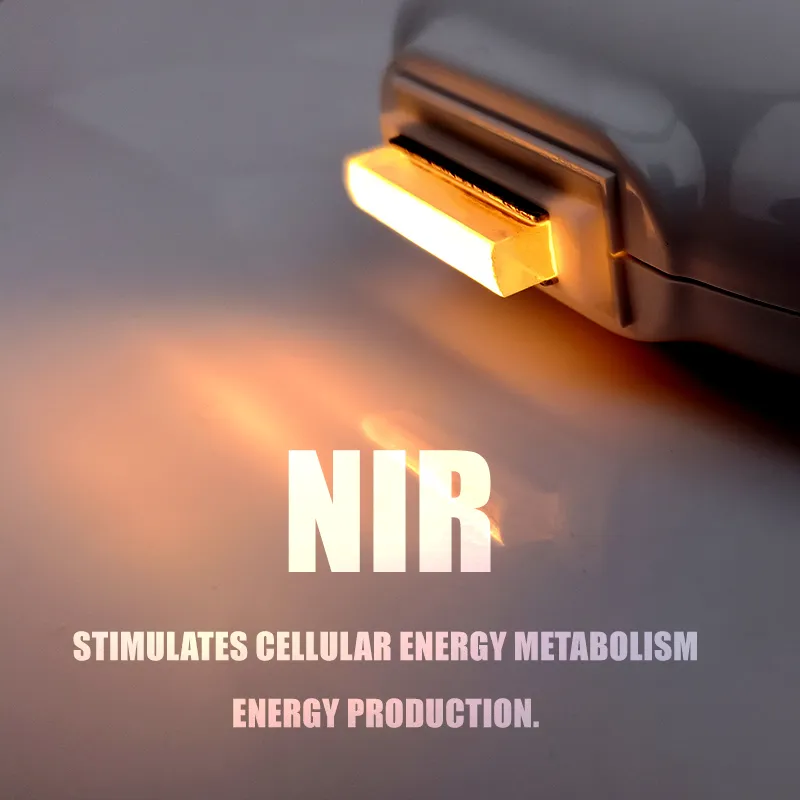

The basic premise of Near Infrared (NIR) light therapy is that long wave light stimulates cellular energy metabolism and energy production. Infrared energy is invisible but penetrates deep into the body's soft tissues, muscles, joints and bones. Three main light-sensitive molecules - hemoglobin, myoglobin and cytochrome c oxidase - absorb light in the NIR range. Of these, cytochrome c oxidase is the most important mechanism of photobiomodulation (or low-intensity laser therapy, LLLT) and is associated with cellular energy (ATP) production.
| Feature |
Specification Details |
| Xenon lamp |
Imported from the UK |
| Screen |
15.6 inch Ultra-High-Definition display |
| Cooling System |
Thermo-Electric Cooling (TEC), water cooling, air cooling, sapphire cooling, high-power dual-fan radiator |
| Water Pump |
German-imported 12V 6A diaphragm silent water pump, 5.3U/min flow rate |
| Power Source |
1000W NIR and a 1200W DPL power source with overcurrent protection, temperature monitoring, and voltage control systems |
| Water Tank |
Transparent 10mm thick acrylic for easy visual inspection |
| Frame |
Robust metal structure for protection and ease of maintenance |

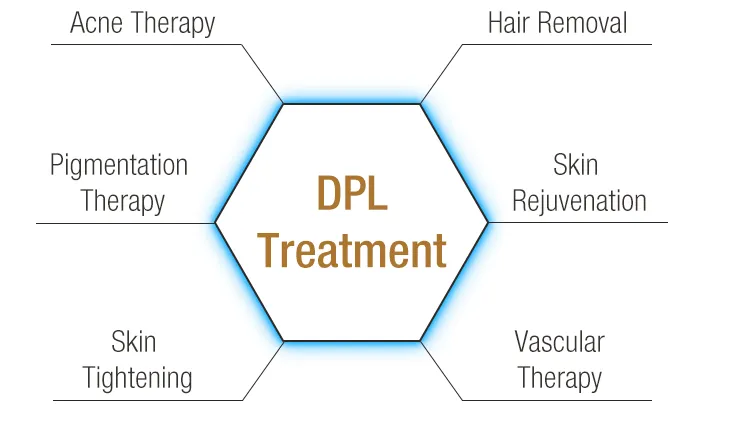

WHAT PROBLEMS CAN DPL SOLVE?
Intro DPL (Dynamic Pulsed Light)

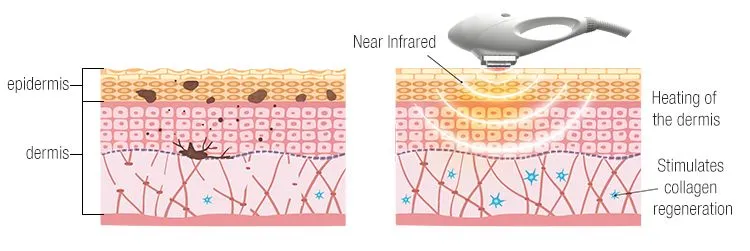

NIR skin tightening rejuvenates sagging, aging skin to look firmer, youthful. It naturally boosts collagen production, offering effective results without the risks and costs of plastic surgery or Botox.

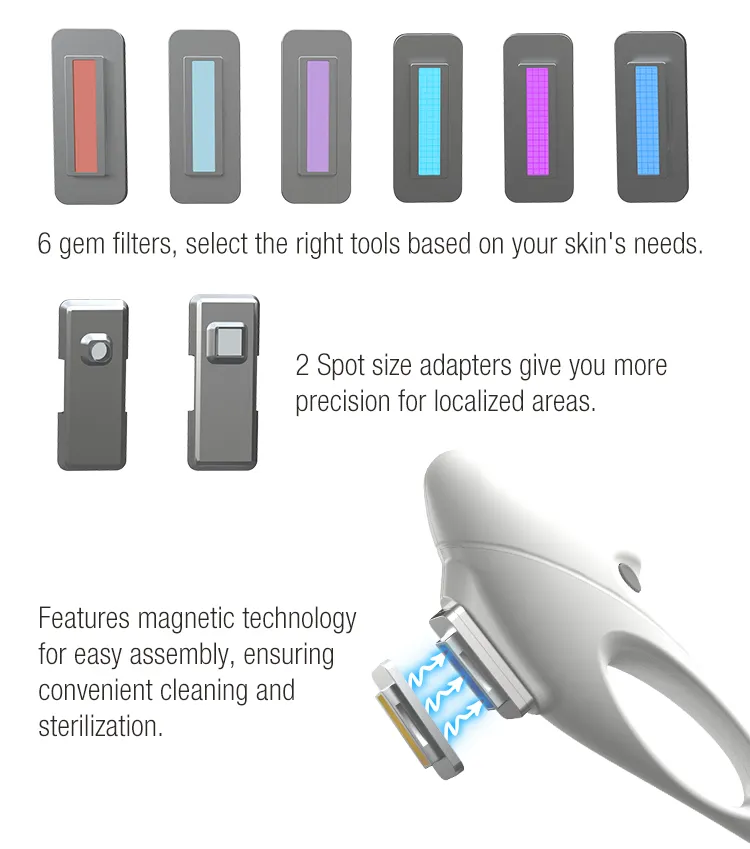

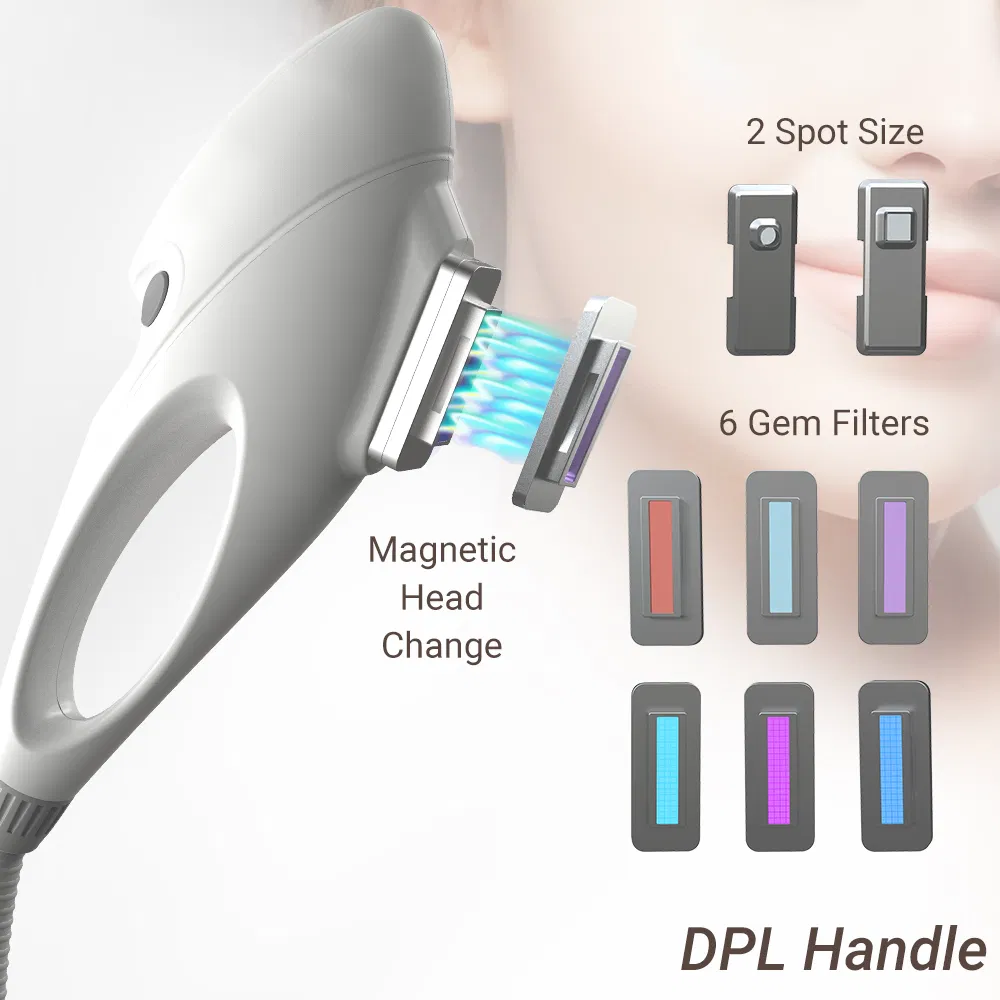

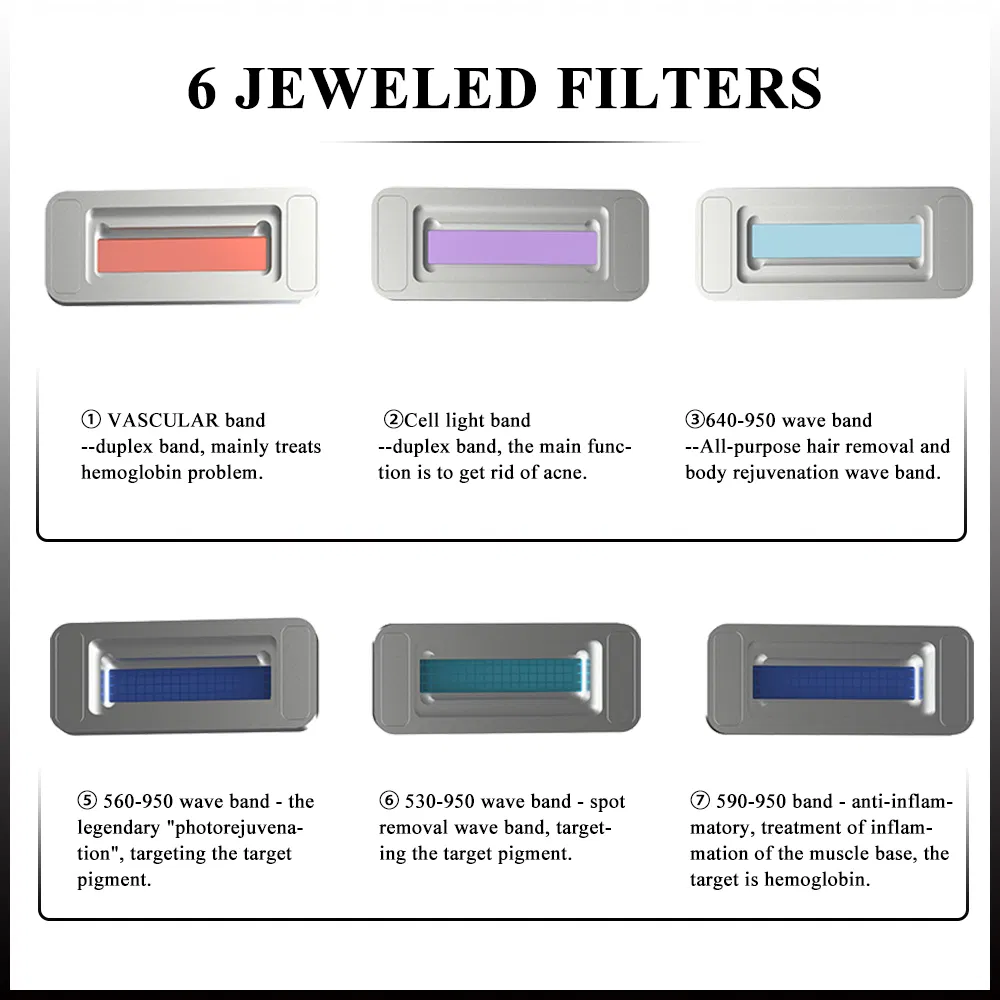

EQUIPPED WITH 6 JEWELED FILTERS AND 2 SPOT ADAPTERS
Can be selected according to skin problems, for localized operation, and with magnetic suction technology, easy to disassemble, easy to clean and disinfect, convenient, safe and reliable.
THE DPL'S KEY FEATURES
1
VASCULAR band: Duplex band, mainly treats hemoglobin problems.
2
Cell light band: Duplex band, the main function is to get rid of acne.
3

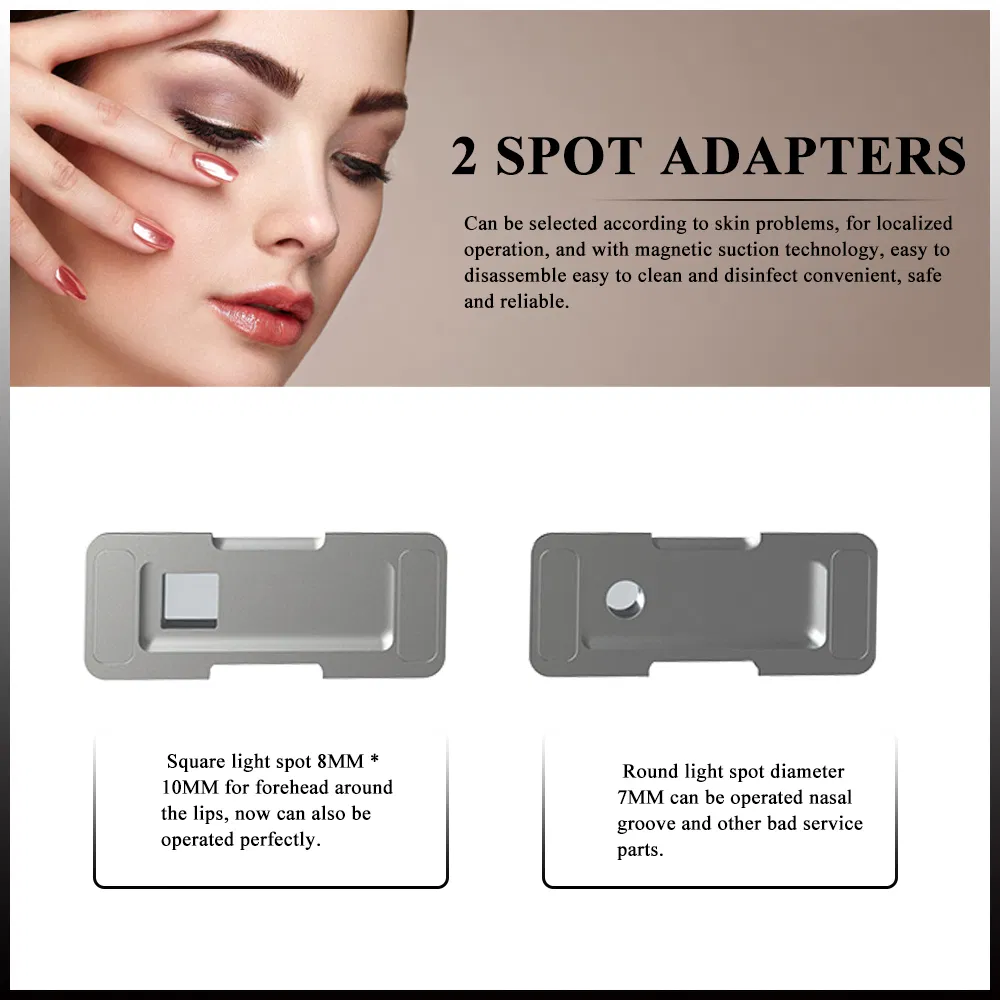

Square light spot (8MM*10MM): For forehead and around the lips, allowing perfect operation.
4
640-950 wave band: All-purpose hair removal and body rejuvenation wave band.
5
560-950 wave band: The legendary "photorejuvenation", targeting the target pigment.
6
530-950 wave band: Spot removal wave band, targeting the target pigment.
7
590-950 band: Anti-inflammatory treatment of inflammation of the muscle base, target is hemoglobin.
8
Round light spot (7MM diameter): Can be operated on nasal groove and other detailed treatment areas.

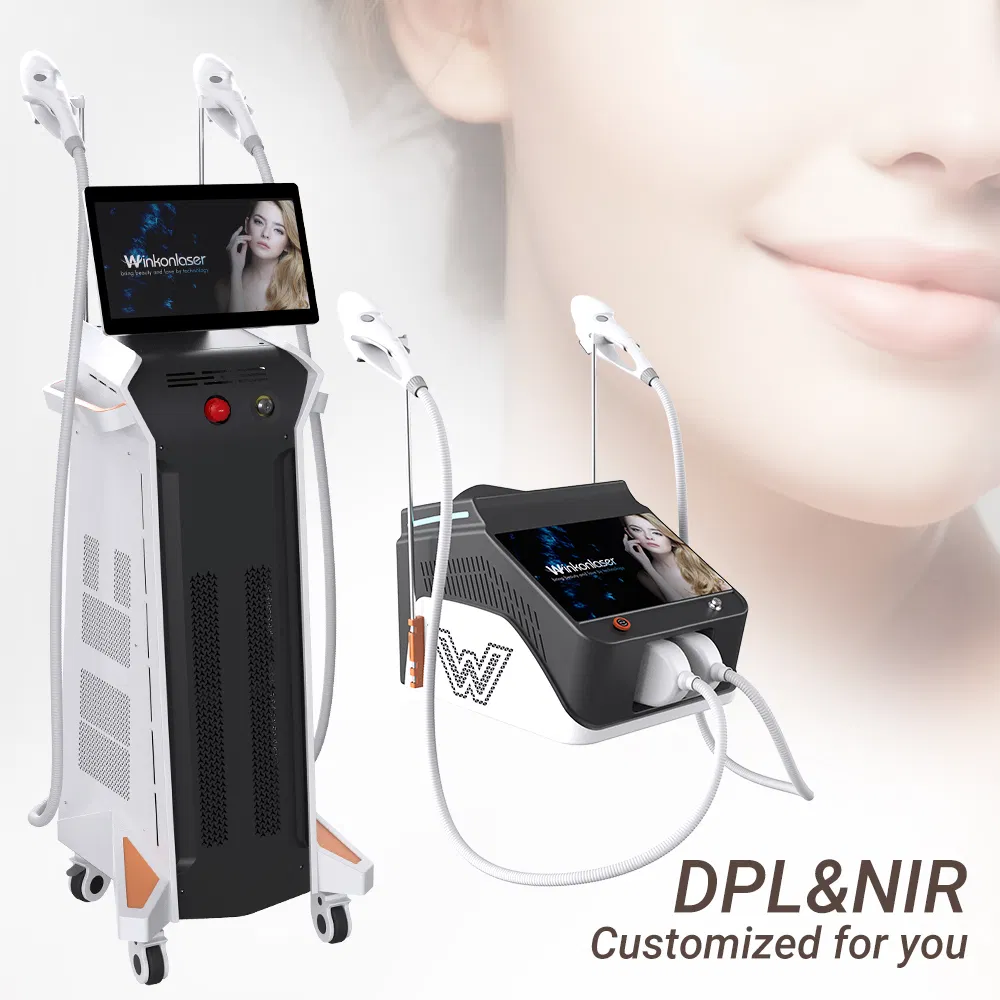

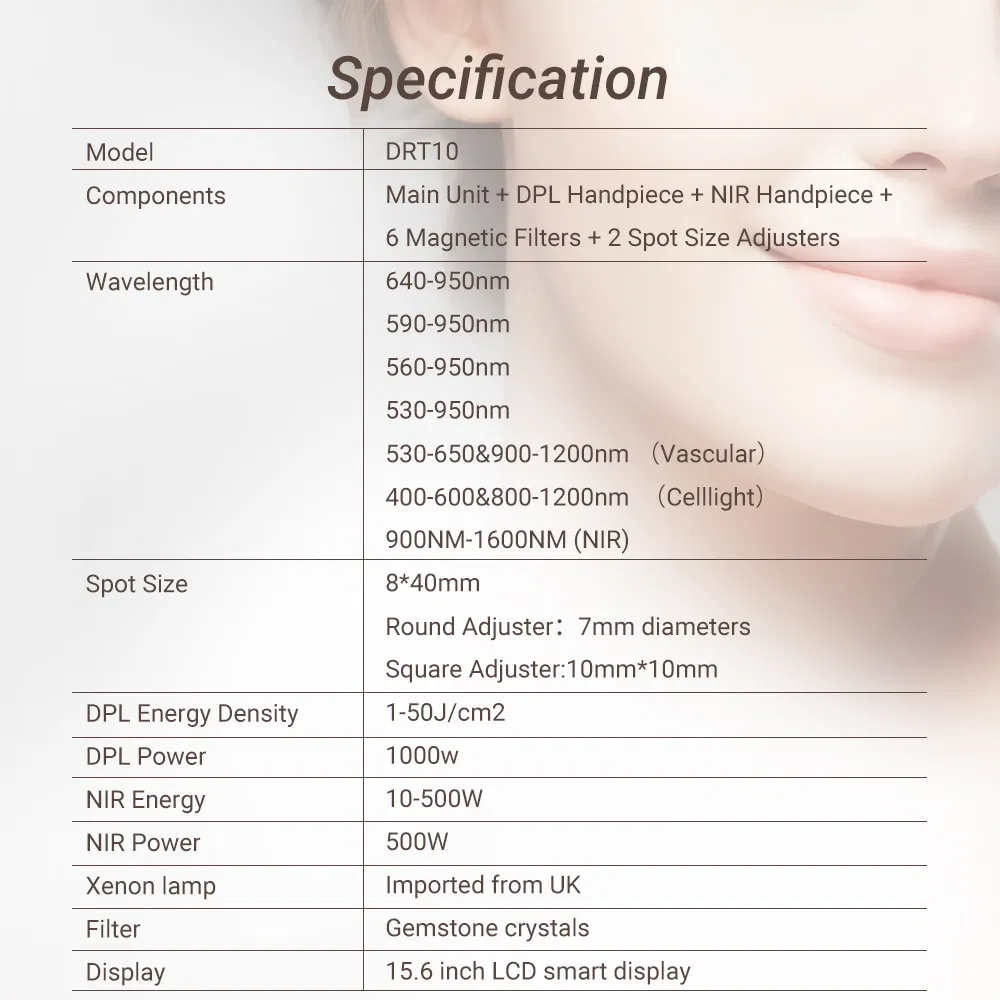

| Technical Parameters |
Configuration & Output |
| Product Name |
DR10 |
Spot Size |
8*40mm |
| Components |
Main Unit + DPL Handpiece + NIR Handpiece + 6 Magnetic Filters + 2 Spot Size Adjusters |
Adjusters Sizing |
Round Adjuster: 7mm diameters
Square Adjuster: 10mm*10mm |
| Wavelength |
640-950nm
590-950nm
560-950nm
530-950nm
530-650 & 900-1200nm (Vascular)
400-600 & 800-1200nm (Celllight)
900NM-1600NM (NIR)
|
DPL Energy Density |
1-50J/cm2 |
| DPL Power |
1000w |
DPL Lifespan |
Approx 1000 hours |
| NIR Energy |
10-500W |
NIR Power |
500W |
| Xenon lamp |
Imported from UK |
Filter |
Gemstone crystals |
| Cooling System |
Water Cooling & Air Cooling |
Cooling Temp |
-5°C |
| Display |
15.6 inch LCD smart display |
Max Output |
2000w |
■ Frequently Asked Questions
What is DPL (Delicate Pulsed Light) technology and how does it benefit hair removal?
DPL is an advanced permanent hair removal technology that integrates the advantages of both IPL and laser energies. By using a target wavelength to convert light into heat, it gradually heats the dermis to destroy hair roots and prevent regrowth, delivering a powerful yet gentle, pain-free treatment.
How does NIR (Near Infrared) skin tightening work?
NIR skin tightening utilizes long-wave light to penetrate deep into soft tissues, muscles, and joints. This light stimulates cellular energy metabolism and cytochrome c oxidase, boosting cellular ATP and naturally increasing collagen production to restore skin firmness and youthfulness.
What applications do the different wave bands and filters cover?
The device features 6 jeweled filters targeting specific treatments: the 640-950nm band for hair removal, 560-950nm for photorejuvenation, 530-950nm for spot removal, 590-950nm for anti-inflammatory treatment, a Cell Light band for acne removal, and a Vascular band for treating hemoglobin issues.
What are the spot sizes and spot adjusters designed for?
The primary spot size is 8*40mm. Additionally, it comes with two magnetic adjusters: a 7mm diameter round adjuster for localized detailed areas such as the nasal groove, and an 8mm*10mm square adjuster ideal for localized application on the lips and forehead.
What components make the cooling system highly stable and safe?
The device incorporates a multi-layer cooling system including Thermo-Electric Cooling (TEC), water cooling, air cooling, and sapphire cooling. Supported by a high-power dual-fan radiator and a silent German-imported diaphragm water pump, it successfully maintains a safe operating temperature down to -5°C.
What are the power capabilities of the DPL and NIR light sources?
The system features a 1000W NIR power source and a 1200W DPL power source, with a maximum output of 2000W. It is fully integrated with overcurrent protection, real-time temperature monitoring, and voltage control systems for maximum safety during operation.
