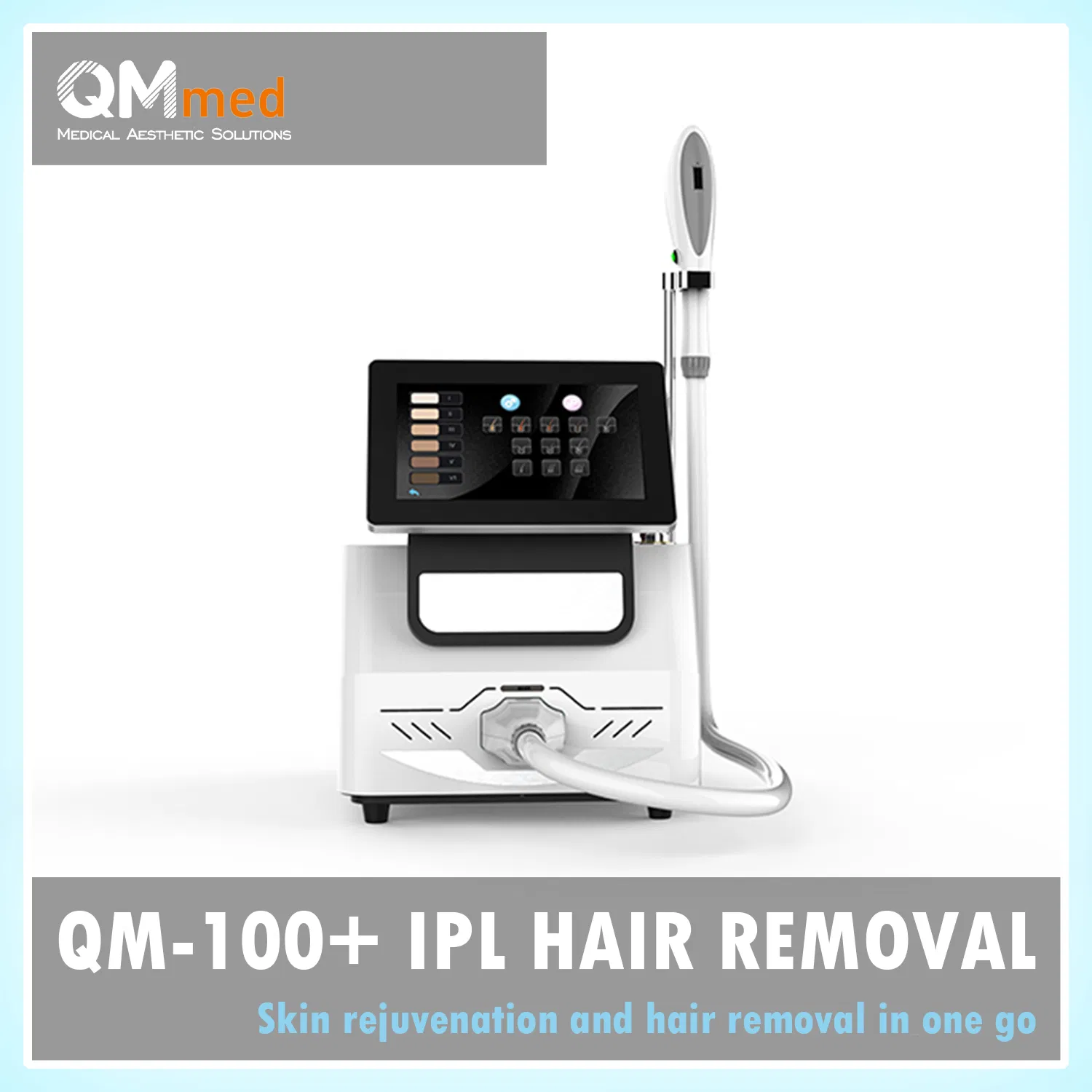

Medical Grade IPL Laser Face Treatment Hair Reduction Skin Rejuvenation Acne Vascular Pigment Removal Device

Customization:	Available
Type:	Laser Beauty Equipment
Theory:	Laser

Basic Information

Model NO.

QM-100

Application

Salon, Home

Portable

After-Sales Service

Online Support, Video Technical Support

Cooling Level

1-5 Level

Cooling System

+Continuous Crystal Contact Cooling

Stand-by Working

20 Hours

Display

10.4" True Color LCD Touch Screen

Electrical Requirements

110/230VAC, 15/20A Max., 50/60Hz

Coolings

Air, Water, Semiconductor Cooling

Wavelengths

400-1200nm, 650-950nm

IPL Xenon Lamp

UK Lamp

Control System

11.6 " TFT True Color LCD Screen

Gross Weight

32kgs

Package Size

34.5*42.5*41cm

MOQ

1PCS

Product Name

IPL Hair Removal Machine

Customized

Accept

Transport Package

Standard Export Wooden Case

HS Code

90191090

Production Capacity

1000 Sets/Month

Product Description

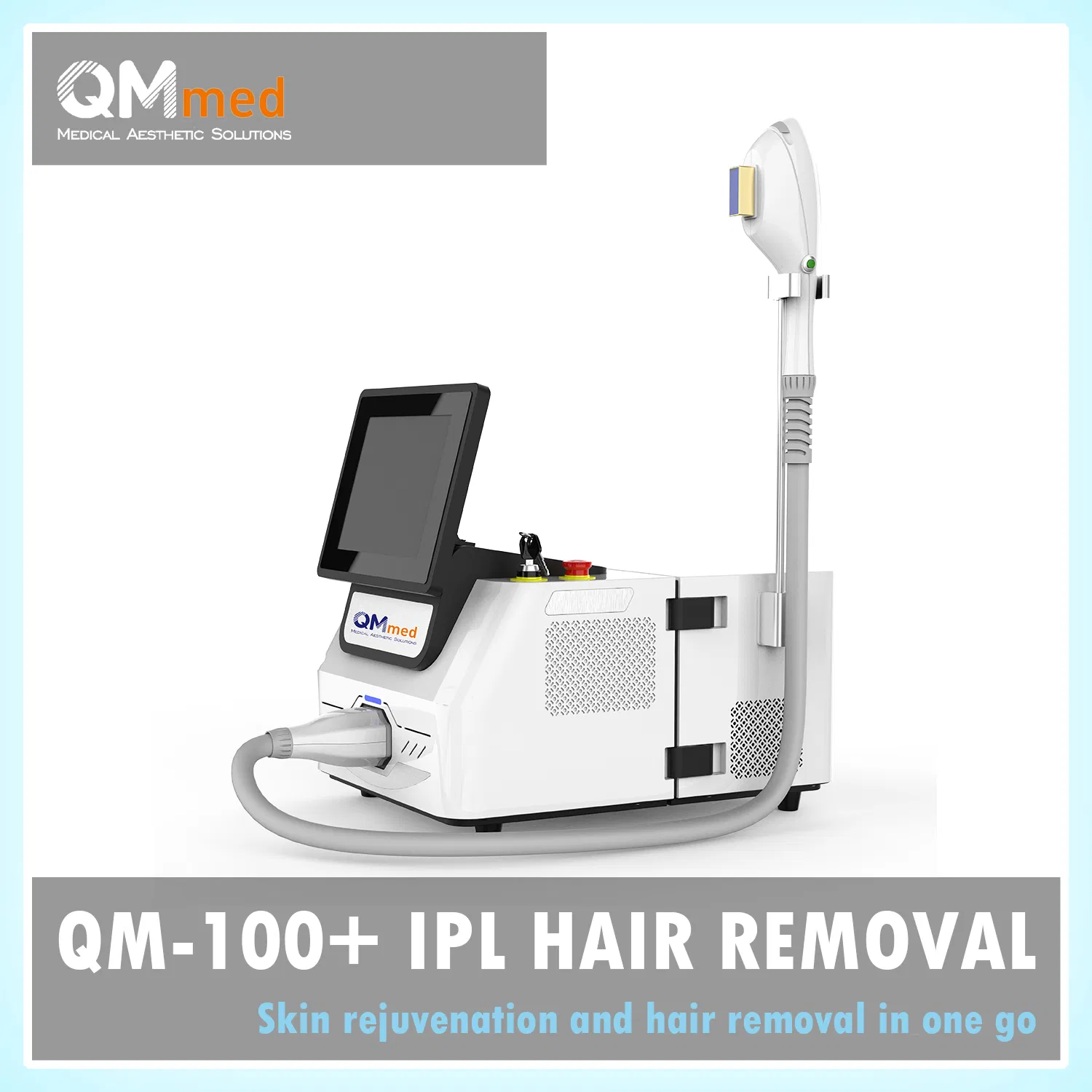

Medical Grade IPL Laser Face Treatment Hair Reduction Skin Rejuvenation Acne Vascular Pigment Removal Device

Model: QM-100

IPL Laser Face Treatment & Hair Reduction Device

Applications:

Hair removal
Skin rejuvenation
Pigments removal
Acnes Removal
Vascular Removal
Wrinkle removal

Specialty of QM-100:

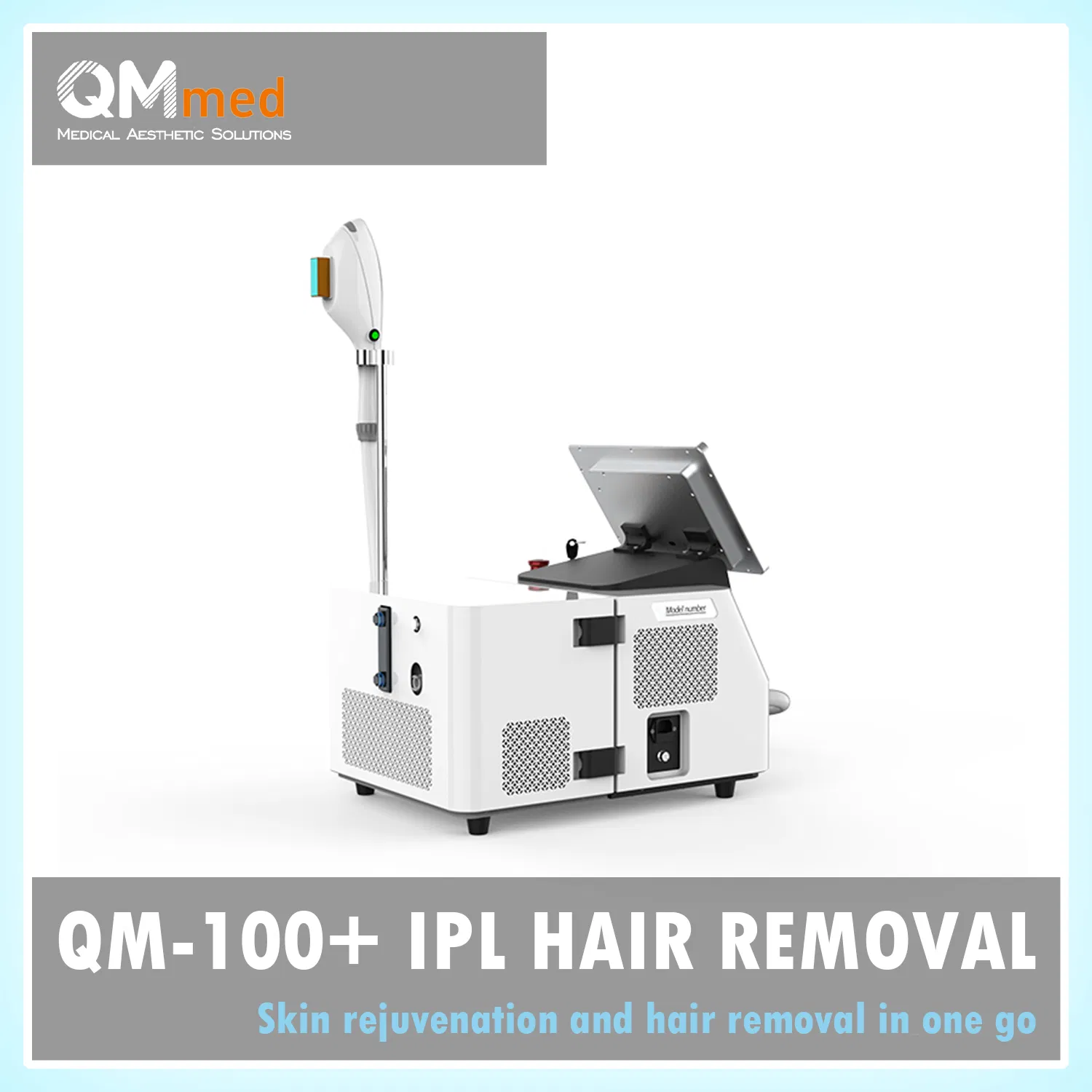

Smart and compact metal design. It can separate into 2 parts, which solves Customs questions in some countries and reduces the complexity of after-sales service.

Working Principle

SHR Technology Overview

It is a revolutionary approach, rather than bombarding your skin with high amounts of damaging energy. SHR fires multiple shots but at low Joules. In doing so, it gently heats the hair follicle to the heat needed and the most you will feel is warmth and a tingling sensation, some clients comparing it to a warm massage. SHR also utilizes In-Motion technology, where the handpiece is always in motion over the skin.

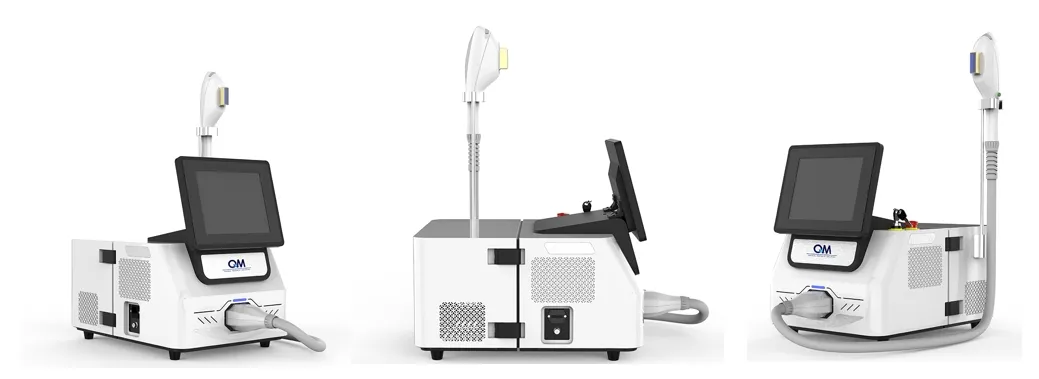

Design Features

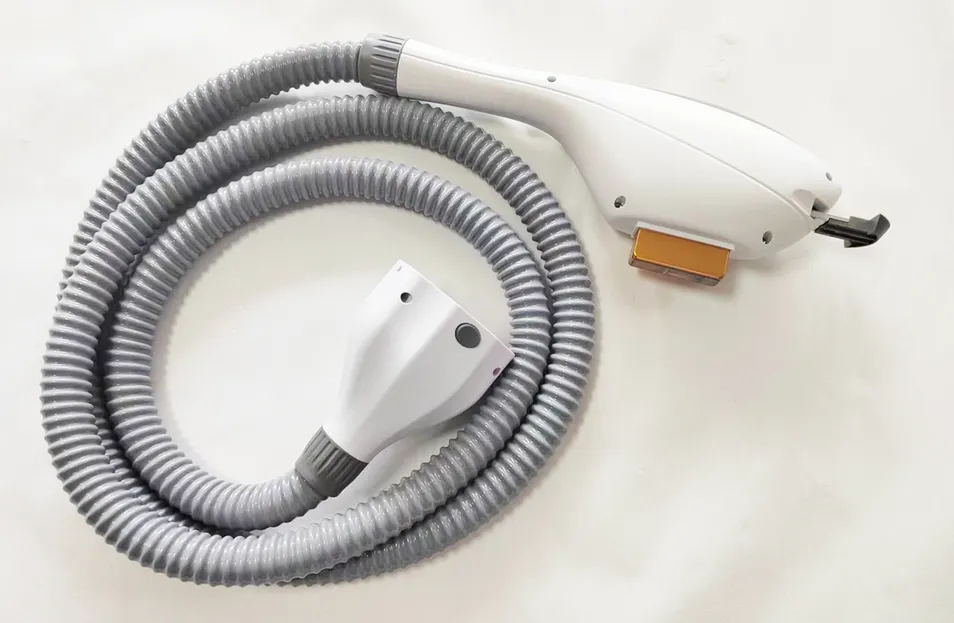

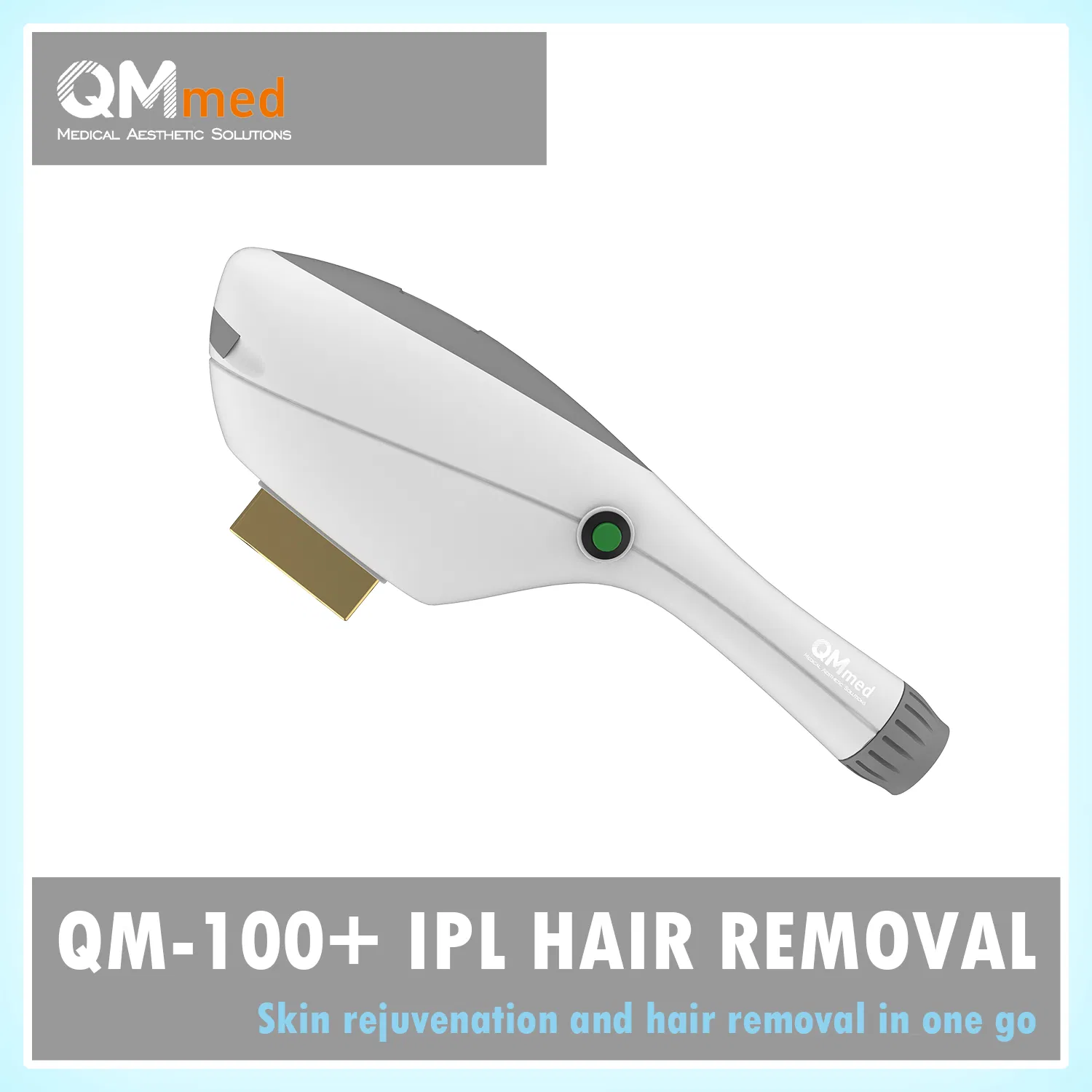

Professional Ergonomic design Handpiece

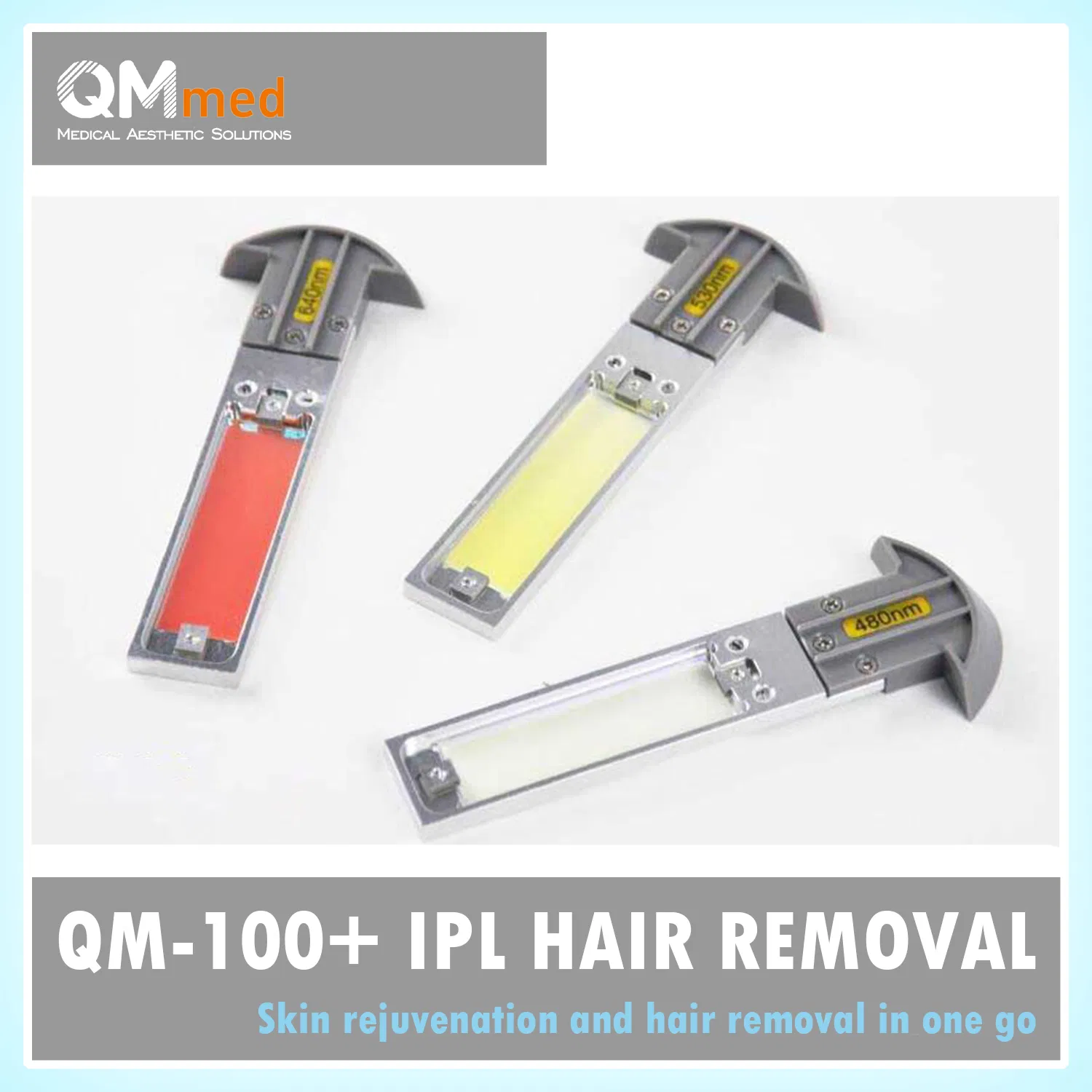

Innovative filters for different treatments

Specification

Item	IPL	SHR
Model	QM-100+	QM-100+
IPL Peak Power	1400W	2000W
Wavelength (Spectrum)	430/430/640—1200nm	650-950nm
Energy Density (Fluence)	10-60J/cm2	1-26J/cm2
Spot Size	15*50mm	15*50mm
Pulse Repetition Rate	0.5-2Hz	1-10Hz
Pulse Duration	1-50ms	1-15ms
Pulses	1-6	Single Pulse
Cooling	+Continuous Crystal contact cooling (-5℃~1℃) +Air cooling +Closed water circulation cooling
Stand-by Working	20 hours	20 hours
Display	10.4" True Color LCD Touch Screen
Electrical Requirements	110/230VAC, 15/20A max., 50/60Hz

Before & After

Certifications & Operations

Certifications

Packaging & Shipping

Frequently Asked Questions

What are the primary applications of the QM-100 device?

The device is designed for hair removal, skin rejuvenation, pigments removal, acnes removal, vascular removal, and wrinkle removal.

What is the specialty design of the QM-100 model?

It features a smart and compact metal design that can separate into 2 parts. This design helps clear Customs issues in certain countries and reduces the complexity of after-sales service.

How does the SHR working principle benefit the skin?

Instead of bombarding the skin with high energy, SHR fires multiple shots at low Joules. It gently heats the hair follicle, resulting in a comfortable warmth and tingling sensation compared to a warm massage, utilizing In-Motion technology to keep the handpiece continuously moving.

How is product quality guaranteed?

Quality is managed through a strict pre-production sample process before mass production, followed by a strict inspection prior to each shipment.

What types of professional systems are available in the product line?

The product line includes Diode Laser/IPL Hair Removal Systems, Q-Switch Nd: YAG Laser Systems, Co2 Fractional Laser Therapy Systems, Pico Laser Therapy Systems, HIFU Systems, Cryolipolysis Body Slimming Systems, EMS body slimming Systems, and Body and Skin Analyser Systems.

How long is the standard delivery time?

Delivery typically takes 3-7 working days after payment confirmation. Large quantity orders or specialized OEM/ODM services will be discussed and agreed upon individually.
