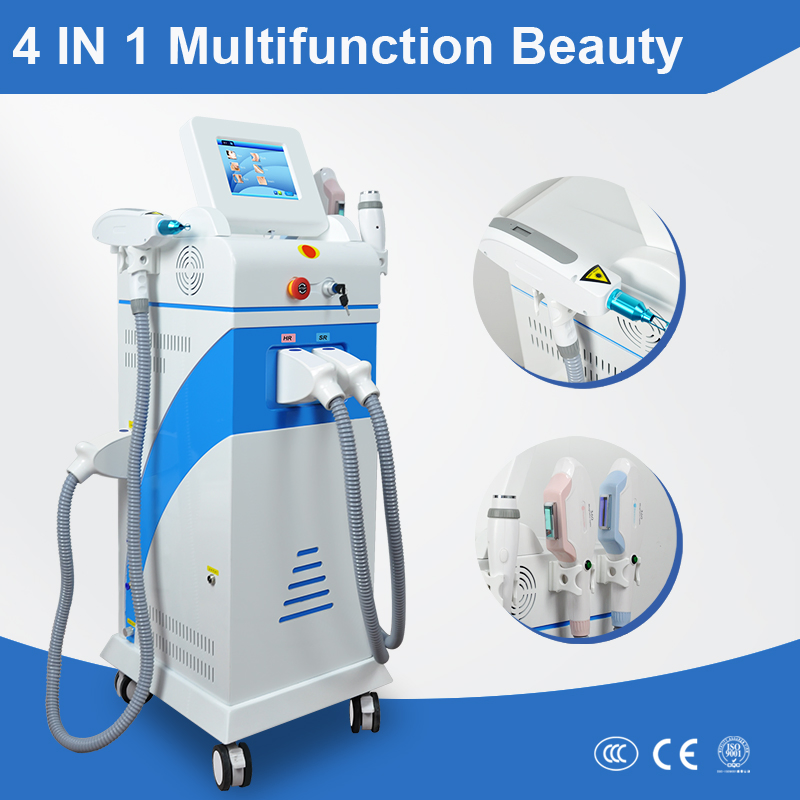

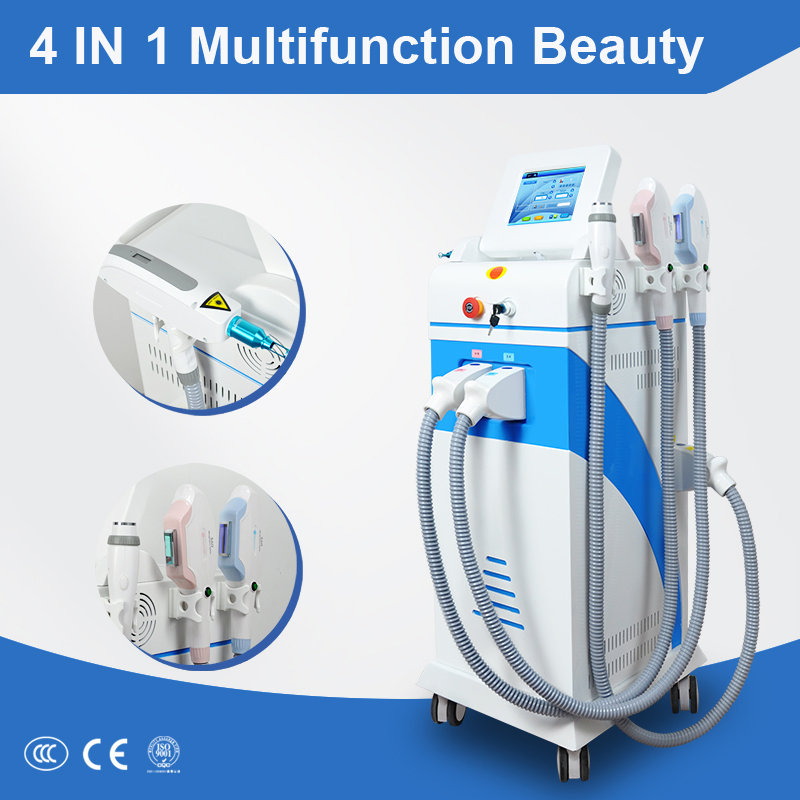

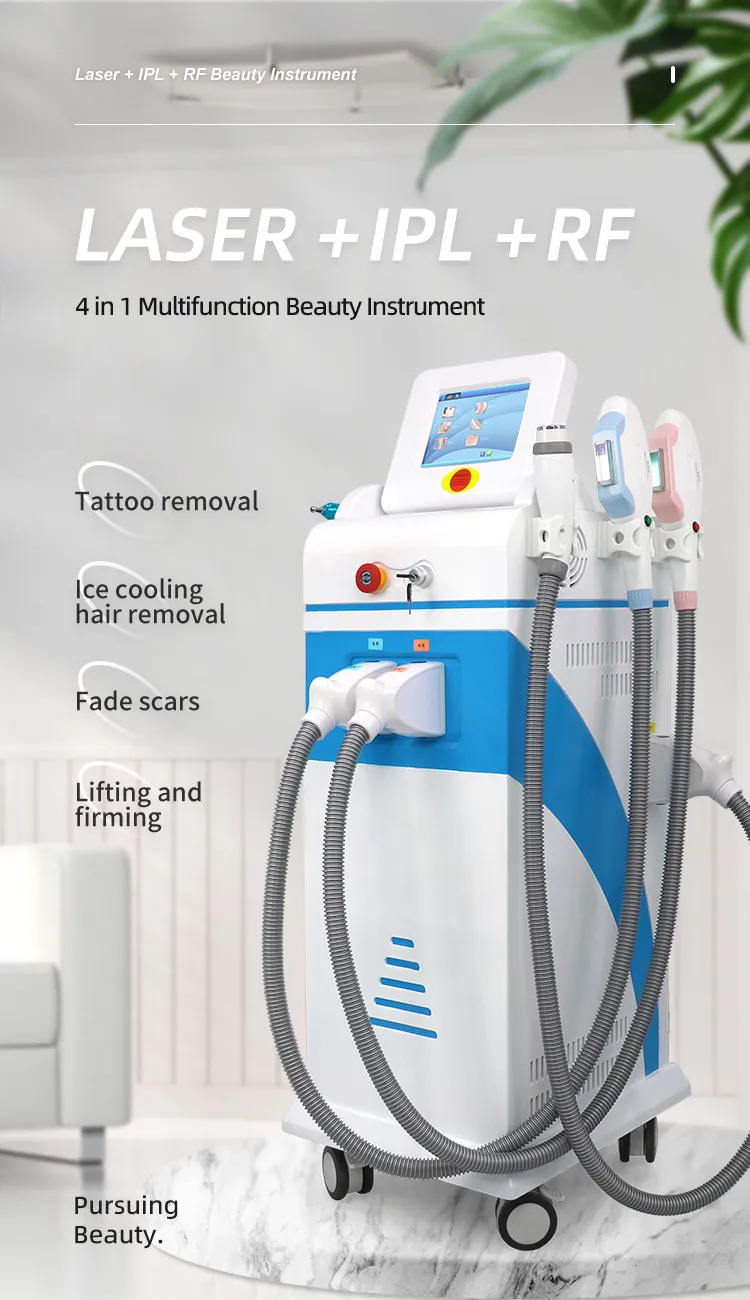

E Light IPL RF YAG Laser Hair Removal Device for Freckle Vascular Acne Treatment

Customization: Available
Type: Hair Removal Instrument
Application: Salon, Home, Clinic

Product Description

E Light IPL RF YAG Laser Hair Removal Device For Freckle Vascular Acne Treatment

Basic Specifications

Model NO.
RL-F05
Portable
Non Portable
Output Power
3000W
Screen Size
8.0 Inch
Handle 1

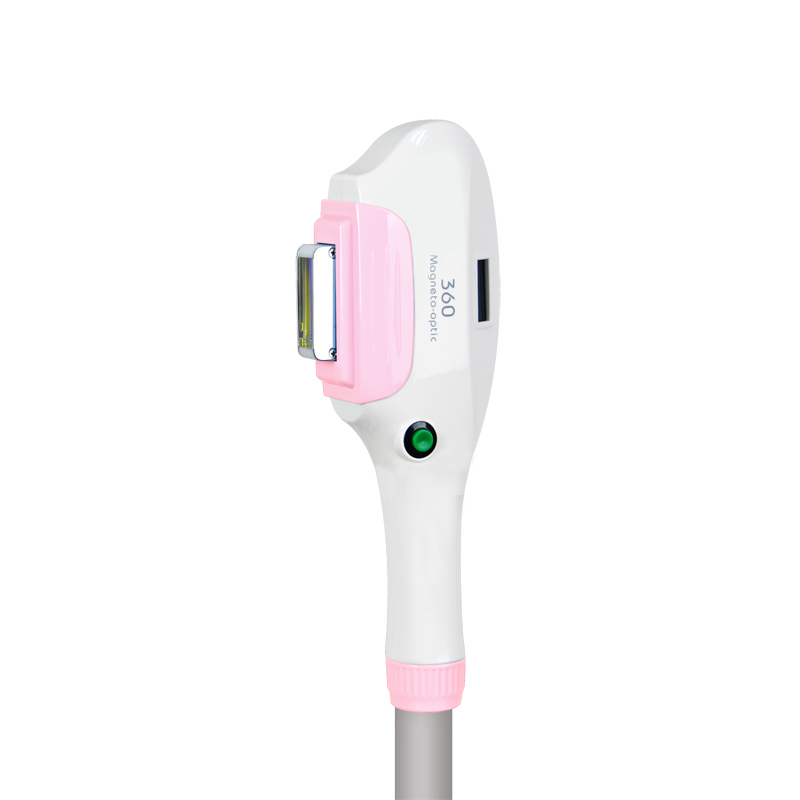

Hr Handle (Hair Removal)
Handle 2

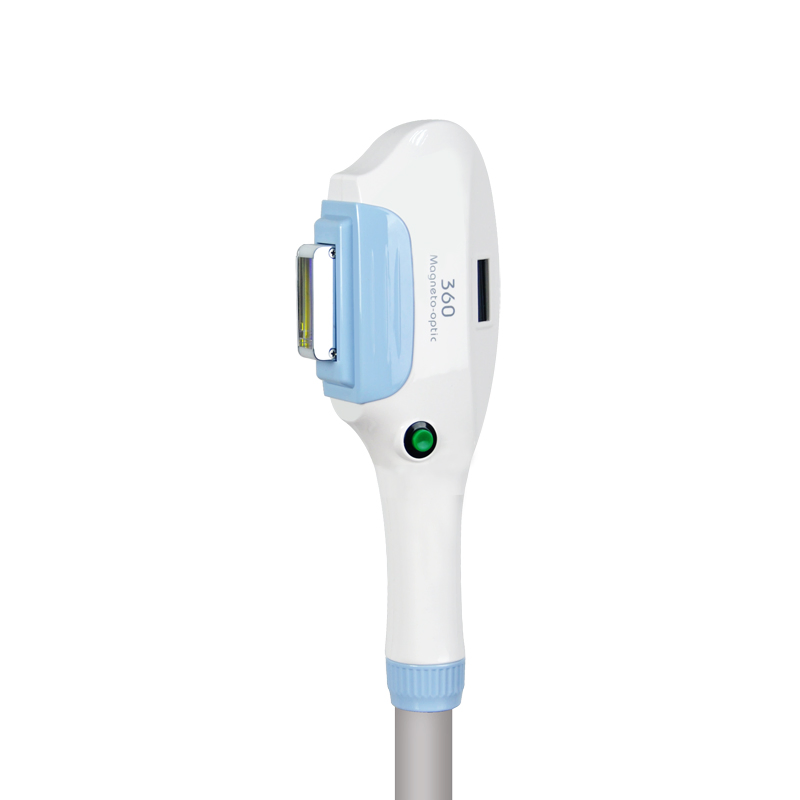

Sr Handle (Skin Rejuvenation)
Handle 3
Laser (532nm, 1064nm, 1320nm)
Handle 4
RF 43mm / 30mm / 15mm (Dia)
Voltage
AC110~ 240V, 50Hz/60Hz
G.W.
50kg
Warranty
1 Year
Certification
CE, RoHS, ISO9001
Transport Package
Plywood Box
Specification
46*67*106cm
Production Capacity
200 Sets/Week

Product Description

1. IPL Introduction

IPL is a set of skin cooling technology, multi-band intense pulse light treatment technology as one of the intelligent, non-stripping skin reconstruction system. Magneto-optical combination of the above-mentioned technology, for different skin types and patients with different skin problems, given the targeted program. In the premise of adequate protection of the epidermis (epidermal cooling technology), the use of magneto-optical technology can be a unique decomposition of the epidermis and dermal spots within the pigment (such as: zygomatic brown glider mole, etc.), so that the maximum energy to focus on the dermis of the collagen tissue and the hair follicle of the papilla area. The use of magneto-selective light and heat principle can enhance the effect of rejuvenation, freckle and hair removal, in patients with no obvious pain and side effects in the case of skin reconstruction and hair removal.

2. IPL Features

  • Comprehensive treatment, the overall improvement of facial skin condition.
  • Without downtime, without a vacation, non-invasive, no need to apply anesthetic ointment.
  • The treatment time is short, taking only 15 to 20 minutes each session.
  • A wider range of treatment, capable of curing deep spots and small hair where conventional light cannot achieve results.
  • No side effects, allowing for normal face care and makeup after treatment.
E Light IPL RF YAG Laser Hair Removal Device for Freckle Vascular Acne Treatment

Technical Specifications

Technical Parameter
Description E Light IPL RF YAG Laser Hair Removal Device For Freckle Vascular Acne Treatment
Voltage 110V- 240V, 50Hz/60Hz

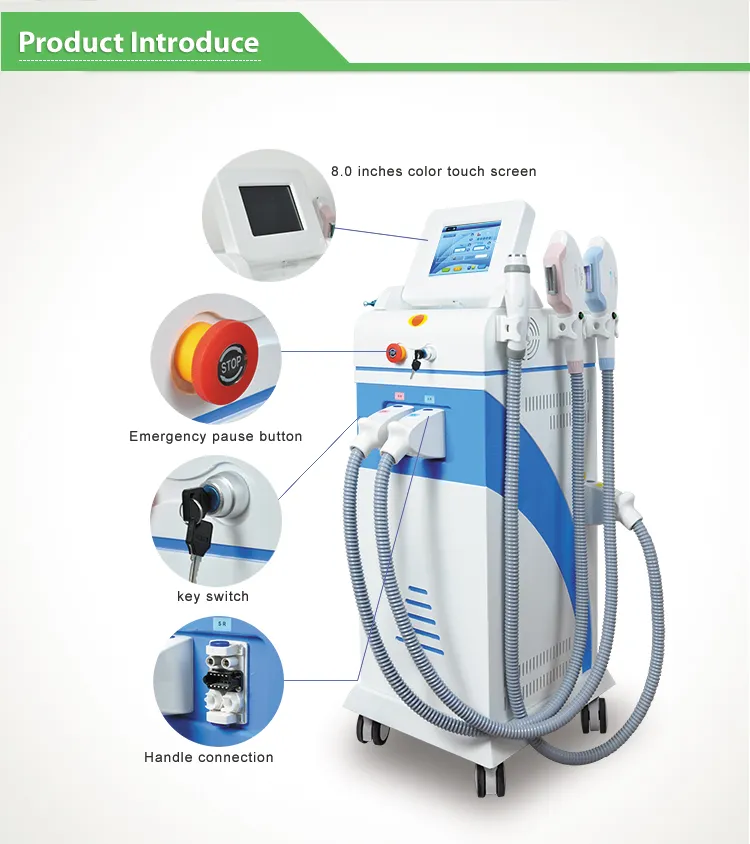

Machine screen 8 inches LCD digital touch screen
Cooling system Semiconductor + intelligent cooling + water + wind
E-Light Parameters
Energy density HR: 10-50J/cm² (IPL)     SR: 10-50J/cm²
Spot size 15*50mm²
E-Light discharge Interval 1s, 2s, 3s, 4s (Variable)
E-Light probe temperature -3°C ~ 2°C

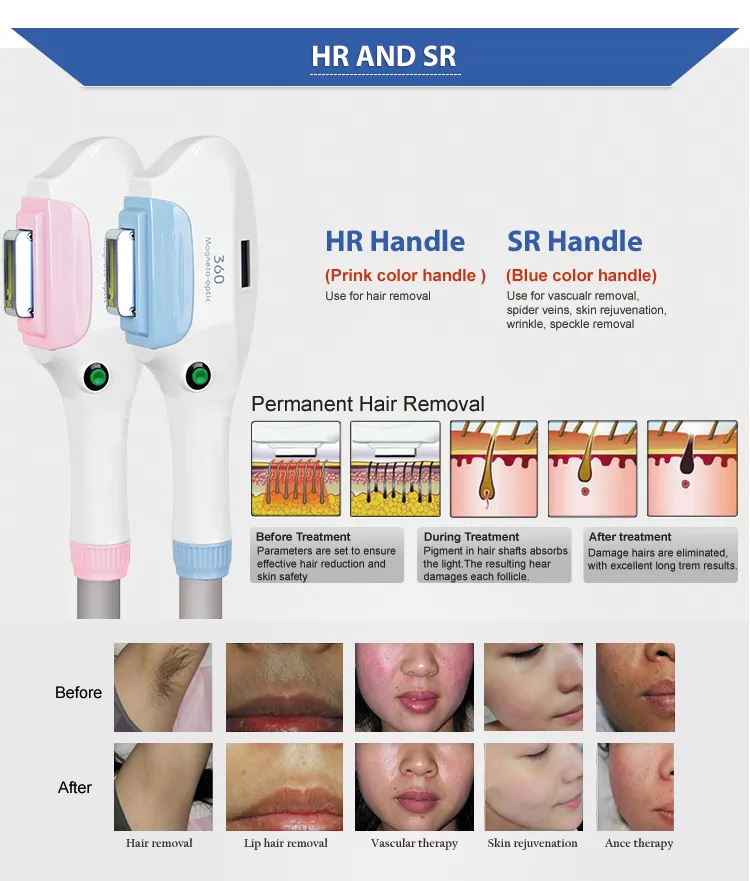

SR handle Acne/vascular/Pigment Removal, Skin Rejuvenation
HR handle Hair Removal
RF (Radio Frequency) Parameters
RF handle size Diameter of handpiece: 43mm / 30mm / 15mm
RF frequency 3p/s
RF energy 1-20J/cm³
RF delay 50-2500ms
RF probe temperature -2°C ~ 0°C
Q Switch Nd Yag Laser Parameters
Laser frequency 1-10Hz
Laser energy 10-2000mj
Laser wavelength 1064nm / 532nm / 1320nm (BDLS)
Other Details
Certificate CE, ROHS, ISO9001
Weight 50KG
Dimension 46*67*106cm
Packing box Plywood box

Technology Overview

1. IPL - Brief Introduction

  • Stimulates the activation of collagen mother cells, supporting newborn collagen to tighten skin and reduce wrinkles.
  • Compact pores appear matte finish, providing a silky smooth skin.
  • Rejuvenation, addressing bleak skin color and uneven skin tone.
  • Removes shallow spots while improving parts of the dermis layer spots, facial light/dark spots, and freckles.
  • Provides quick and effective hair removal.
  • Improves facial superficial microvascular disease, microvascular expansion, and vascular skin ulcers.
  • Improves acne and related skin concerns.
E Light IPL RF YAG Laser Hair Removal Device for Freckle Vascular Acne Treatment

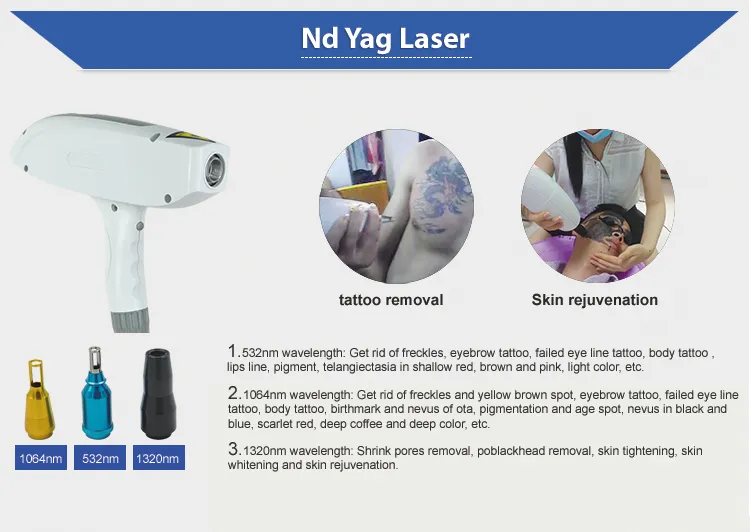

2. Nd Yag Laser - Brief Introduction

Equipped with 532nm, 1064nm, and 1320nm wavelengths, the ND YAG Laser is designed for effective tattoo removal and skin whitening treatments combined with medical carbon masks.

E Light IPL RF YAG Laser Hair Removal Device for Freckle Vascular Acne Treatment

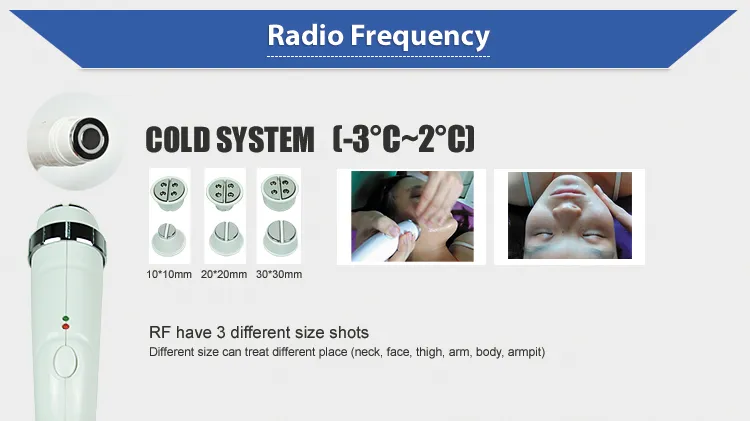

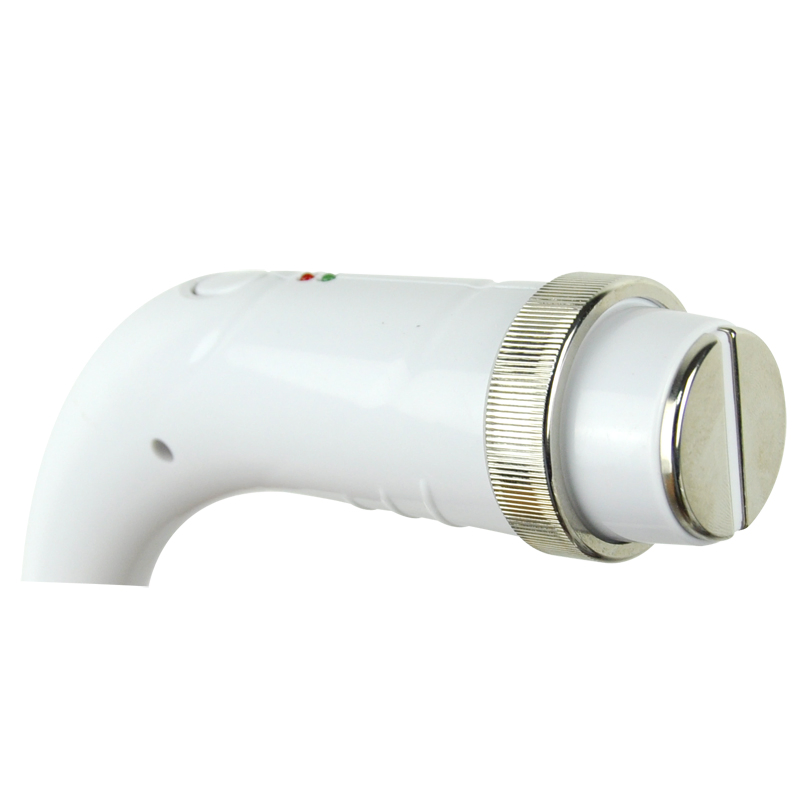

3. RF - Brief Introduction

Bipolar RF working system designed for effective wrinkle removal, body shaping, and weight loss applications.

E Light IPL RF YAG Laser Hair Removal Device for Freckle Vascular Acne Treatment E Light IPL RF YAG Laser Hair Removal Device for Freckle Vascular Acne Treatment

Service & Support

Warranty & Training

We provide 1 year of factory warranty under normal and proper operation. This covers labor and materials but excludes consumable parts.

A professional international after-sales service team is available to provide 24-hour support and technical assistance. Designed with modularization, any issue can be diagnosed through descriptions, photos, or videos, and solved immediately. For any issues that cannot be easily resolved, replacement modules will be sent free of charge within the warranty period (easily replaceable by anyone with basic electrical knowledge).

Detailed copy user manuals covering introduction, operation, and maintenance are provided with the package.

Delivery Details

Lead Time: 3~5 working days after receiving payment.

Shipping Methods: DHL, FedEx, UPS, EMS, by sea, or by air.

We always choose the most economical and reliable shipping options to ensure timely delivery. Tracking numbers are provided as soon as the shipment is dispatched.

Frequently Asked Questions

1. Do you have any warranty?
Yes, we do. We offer a comprehensive 12-month warranty on our machines.
2. How is your after-sale service?
We have a dedicated professional technical support team ready to assist you. You can reach us via phone, webcam, or online chat applications to resolve any inquiries. Please contact us immediately if the machine exhibits any operational issues.
3. What certification do you have?
Our machines hold CE, RoHS, and ISO9001 certifications, ensuring top-tier quality and safety. We enforce strict quality control standards to prevent operating issues.
4. Will you teach how to use the machine?
Yes. We provide a complete user manual and training videos. Additionally, our online support is available 24/7 to help resolve any operational questions.
5. Why should you choose us?
We are a powerful manufacturing facility providing competitive pricing and robust technical support. With over 7 years of production experience in beauty machines, strong R&D, CE certification, and customization capabilities (OEM/ODM), we deliver quality assurance.
6. How is the machine packaged and delivered?
The machine is packaged securely in a robust plywood box to prevent transit damage. It is typically dispatched within 3 to 5 working days after payment confirmation via air, sea, or express courier (DHL, FedEx, UPS, EMS).
